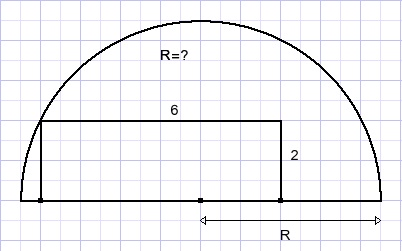

70.
Calculate radius R.
![](../geo70/fig70b1.jpg)

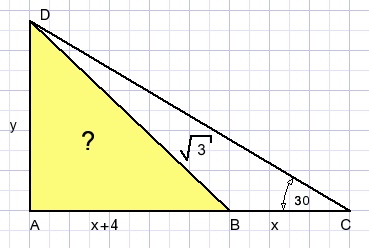

71.
Calculate the colored area.
![](../geo70/fig70c1.jpg)

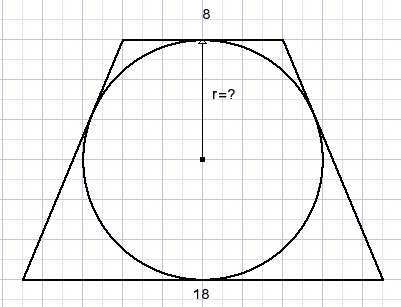

72.
Calculate radius r.
![](../geo70/fig70d1.jpg)
73.
Calculate the colored area.
![](../geo70/fig70e1.jpg)
74.
Calculate radius R.
![](../geo70/fig70f1.jpg)
75.
Calculate radius R of the quarter circle.
![](../geo70/fig70g1.jpg)

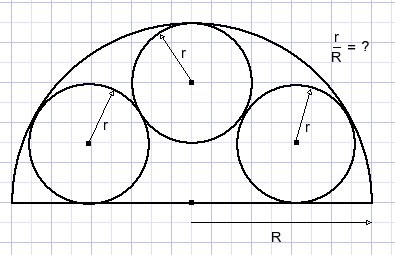

76.
Calculate the ratio r/R.
![](../geo70/fig70h1.jpg)

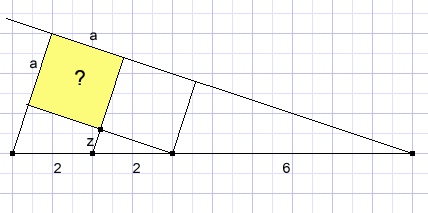

77.
Calculate the colored area.
![](../geo70/fig70j1.jpg)

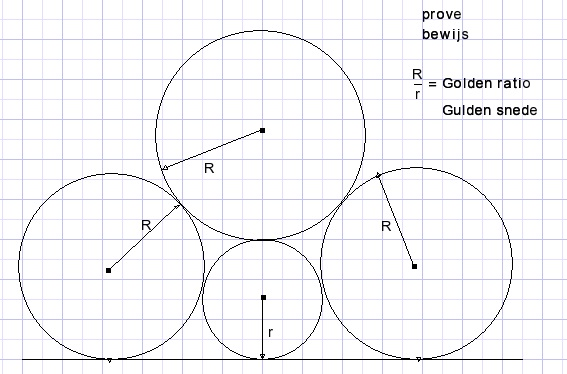

78.
Calculate the radius R/r.(Golden ratio).
![](../geo70/fig70k1.jpg)
79.
Calculate the colored area.
![](../geo70/fig70l1.jpg)
