Delphi programming trics:
handling serial bit streams

Introduction

This article decribes the reading and writing of serial bit streams from/to a buffer.
This problem was part of a project for image compression..

Operations

Bit strings of varying length are presented to be stored in a buffer.
Also, bit streams of varying length are to be extracted from a buffer.
The buffer is an array of dwords (cardinal).
The bit packages are first assembled into a 32 bit register, called ACCU.
When the accu is full, it is copied to the buffer and a pointer is updated to address the next entry in the buffer.

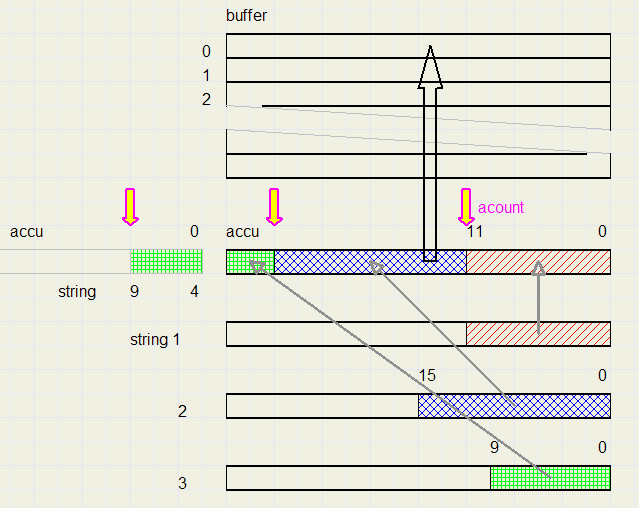

Below, the data flow is illustrated.
Acount counts the number of bits present in the Accu.
When accu reaches a count of 32 (or more) it has to be saved into the buffer.
In the picture above, the accu is shown twice for clarity.

Below is the procedure for the storing of bit streams.
The buffer is named "director" , it's index is dirPTR.
A dword containing n bits must be stored (n < 32)
procedure storeCode(w : dword; n : byte);
//store n bits of w to dirtab (via accu)
//n = 1 ..16
var space : byte;
begin
 space := 32 - acount;
 accu := accu or (w shl acount);
 if space >= n then            //if space
  begin
   acount := acount + n;
   if acount = 32 then
    begin
     acount := 0;
     director[dirPtr] := accu;
     inc(dirPtr);
     accu := 0;
    end;
  end
  else                         //if no space
   begin
    director[dirPtr] := accu;
    accu := 0;
    inc(dirPtr);
    accu := w shr space;
    acount := n - space;
   end;
end;
When a new bitstring is presented, there are two possibilities:

1. The accu has space
acount is increased by n
w is left shifted to the accu by acount positions
if acount = 32, then it must be written to the buffer

2. The accu has no space
The (partial) bitsteam is left shifted into the accu, just as in case 1.
Then the bitstream is right shifted into the accu by the amount of the original space.
Acount is set to the bitstream length - the space.

For the extraction of bitstreams from the buffer a similar approach holds.
Below is the function that extracts (reads) n bits:
function readcode(n : byte) : dword;
//read n bits from director table
var mask : dword;
    space : byte;
begin
 if acount= 0 then
  begin
   accu := director[dirPtr];
   inc(dirPtr);
  end;
 mask := (1 shl n) -1;
 space := 32 - acount;
 result := accu shr acount;
 acount := acount + n;
 if acount = 32 then acount := 0
  else if acount > 32 then
        begin
         accu := director[dirPtr];
         inc(dirPtr);
         dec(acount,32);
         result := (result or (accu shl space));
        end;
 result := result and mask;
end;

Termination

When terminating, there may be unstored bits in the accu.
To store them issue
    storecode(0, 32-acount);

Global data

The following data must be declared outside the read and write bitstream procedures:
var director    : array[0..maxdir] of dword;
    dirPtr      : dword;
    accu        : dword;  //bit asembly register
    acount      : byte;   //nr of valid bitsin accu
Before starting the storage or reading of strings, variables dirPtr, accu, acount must be set to zero.
